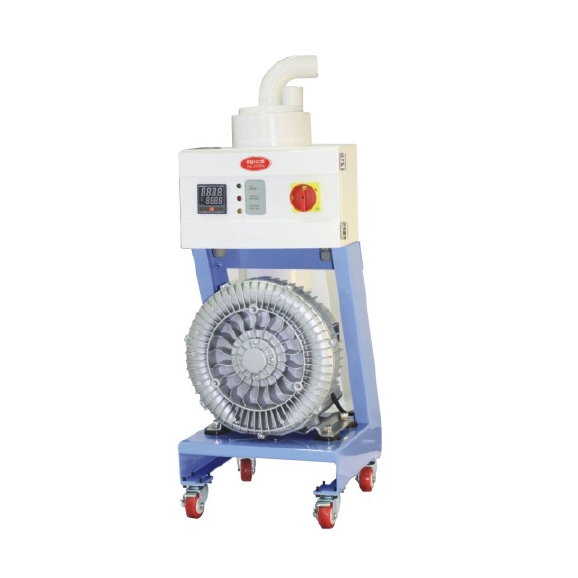

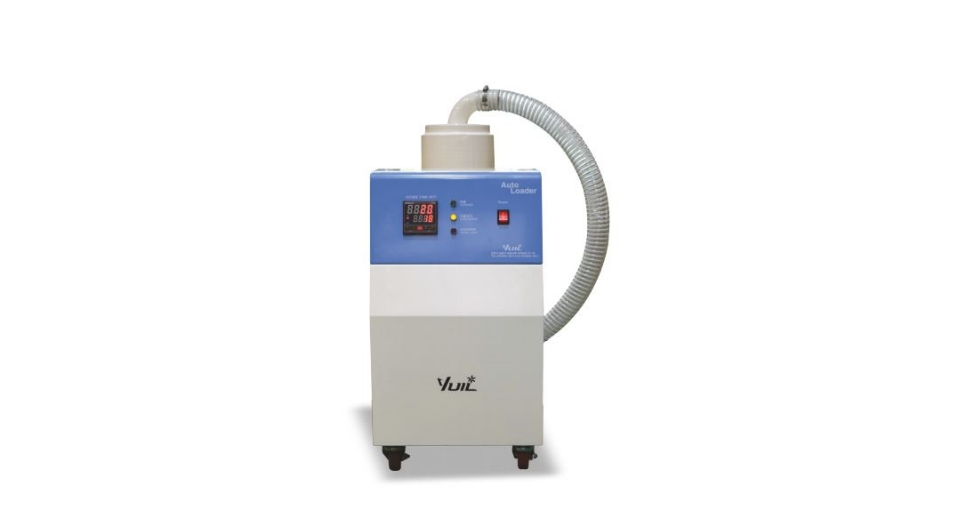

호퍼로더 Hopper Loader

  • RING BLOWER의 소음이 적으며 풍량풍압은 높여주므로 강력한 힘을 발휘함
  • 집진 싸이클론 분리방식으로 분진을 걸러줌
  • The machine, along with a hopper drier and automatic mixer is used for stream lining material supply process
  • A sepa rate dust collecting cyclone collects the dusts from pulverized mater ials first and carter strains the dusts again
모델
MODEL
Power
(kw)(hp)
Air Quantity
(㎡/min)
Cyclone
Volume(ℓ)
Air pressure
(mmAQ/MAX)
Feeding Line
(mm)
Vacuum Line
(mm)
YHL-02
1.5(2)
4.1
2500
2900
Φ38.1
Φ50.8
YHL-03
2.55(3)
4.1
2800
2900
Φ38.1
Φ50.8
YHL-05
3.75(5)
6.1
3000
3800
Φ50.8
Φ60.5
YHL-07
6.3(7.5)
10
3500
2800
Φ50.8
Φ60.5
