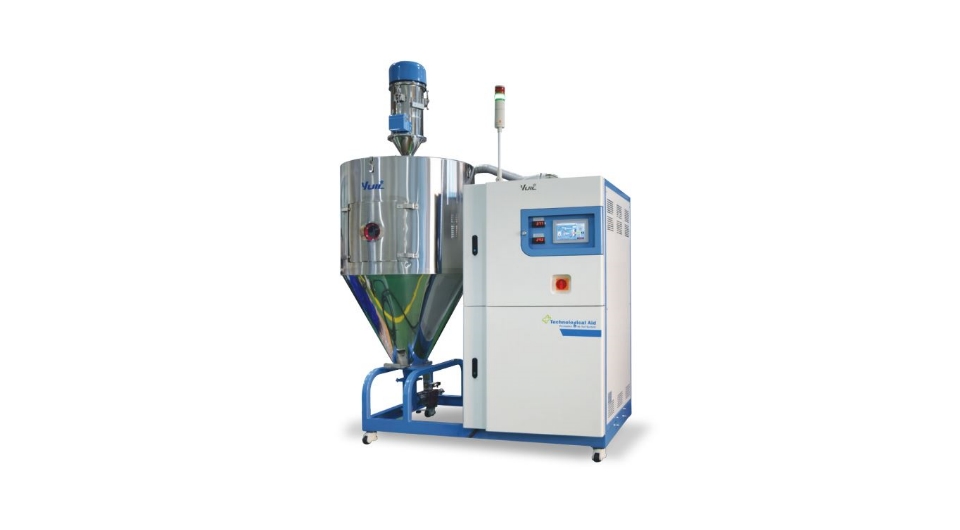

제습건조기 Dehumidifying Dryer

안정된 저 노점(- 40℃ ~ - 50℃), 풍부한 풍량
Low dew point(- 40℃ ~ - 50℃), abundant air flow
- 제습 공기의 누설을 완전 차단하여 저노점의 안정된 정밀 건조가 가능하며, 에너지 절감과 동시에 단시간 내에 건조가 가능합니다.
- 기존의 2탑 방식에서 냉각라인이 추가된 최적의 건조방식으로 낮은 온도에서의 건조가 가능하며 온도 편차가 거의 없습니다.
- PID 온도 컨트롤에 의한 운전방식과 다기능의 운전 및 경고 기능으로 기계 작동이 간편합니다.
- Stabel and precise low dew point drying, energy saving and rapid drying throw perfect sealing of dehumikified air
- Low temperature drying and less temperature deviation by cooling line added in conventional double tower system.
- Equipped with multi-functional operation and warning function based on PID temperature control and PLC operation. Products can be operated easily.
원료명 Material | 건조온도 Temp(℃) | 초기함수율 Initial(%) | 최종함수율 Final(%) | 공기량 * K=㎡/hr | 건조시간 Time(hr) | 건조량 Drying performance | ||||
YDD-50 | YDD-100 | YDD-200 | YDD-500 | YDD-800 | ||||||
PC | 120 | 0.3 | 0.01 | 1.5 | 2~3 | 35 | 80 | 150 | 250 | 380 |
ABS | 80 | 0.3 | 0.02 | 1.5 | 2~3 | 35 | 80 | 150 | 250 | 380 |
CA | 60~70 | 1 | 0.02 | 2.1 | 2~3 | 23 | 55 | 100 | 170 | 270 |
PA6.66 | 75~80 | 1 | 0.04 | 2 | 4~6 | 25 | 60 | 110 | 185 | 290 |
PBT | 120~140 | 0.2 | 0.02 | 2 | 3~4 | 25 | 60 | 110 | 180 | 290 |
PET | 140~160 | 0.2 | 0.005 | 3 | 4~6 | 17 | 40 | 75 | 125 | 190 |
PETG | 60~70 | 0.2 | 0.02 | 3.7 | 3~4 | 14 | 35 | 60 | 100 | 150 |
PMMA | 80 | 0.2 | 0.02 | 1.5 | 3~4 | 35 | 980 | 150 | 250 | 380 |
POM | 100 | 0.2 | 0.02 | 1.5 | 2~3 | 35 | 80 | 150 | 250 | 380 |
PPO | 110~120 | 0.1 | 0.04 | 1.5 | 1~2 | 35 | 80 | 150 | 250 | 380 |
PPS | 140~160 | 0.1 | 0.02 | 1.5 | 3~4 | 35 | 80 | 150 | 250 | 380 |
SAN | 140~160 | 0.1 | 0.05 | 1.5 | 2~3 | 35 | 80 | 150 | 250 | 380 |
K=㎡/hr for a production of 1kg/h
-상기의 건조 성능은 원료의 등급, 초기 함수율, 건조 온도에 따라 달라집니다.
(Above performance can vary with grade of raw materials, initial percentage of water content and drying temp)
모델 MODEL | 건조 브로워 Drying Blower | 건조 히터 Drying Heater | 재생 브로워 Regenerating Blower | 재생 히터 Regenerating Heater | 제습제 MolecularSieve cap. (kg) | 에어쿨러 Cooler Capacity ℓ / min | 건조 온도 Dryer Temp. Max. ℃ | 제품사이즈 Dimmension (W x L x H) (mm) | 적용 제습 호퍼 Applicated Hopper |
YDD-050 | 0.86 | 7.5 | 0.2 | 5 | 12 | 20 | 180 | 750x1400x1820 | 25~80 |
YDD-075 | 0.86 | 9 | 0.2 | 6 | 14 | 20 | 180 | 750x1490x1980 | 80~150 |
YDD-100 | 0.86 | 10.5 | 0.2 | 7 | 16 | 30 | 180 | 850x1600x2200 | 100~180 |
YDD-150 | 1.12 | 12 | 0.4 | 8 | 18 | 30 | 180 | 850x1650x2400 | 150~200 |
YDD-200 | 1.12 | 16 | 0.4 | 9 | 20 | 40 | 180 | 1000x1780x2530 | 200~250 |
YDD-300 | 2.2 | 24 | 0.4 | 10 | 30 | 50 | 180 | 1100x1980x2700 | 250~350 |
YDD-500 | 6.3 | 32 | 0.75 | 12 | 40 | 60 | 180 | 1200x2080x3200 | 400~550 |
YDD-800 | 12.6 | 36 | 0.93 | 15 | 50 | 100 | 180 | 1300x2100x3500 | 550~800 |
YDD-1000 | 12.6 | 45 | 1.12 | 16 | 60 | 120 | 180 | 1500x2500x4200 | 800~1500 |
